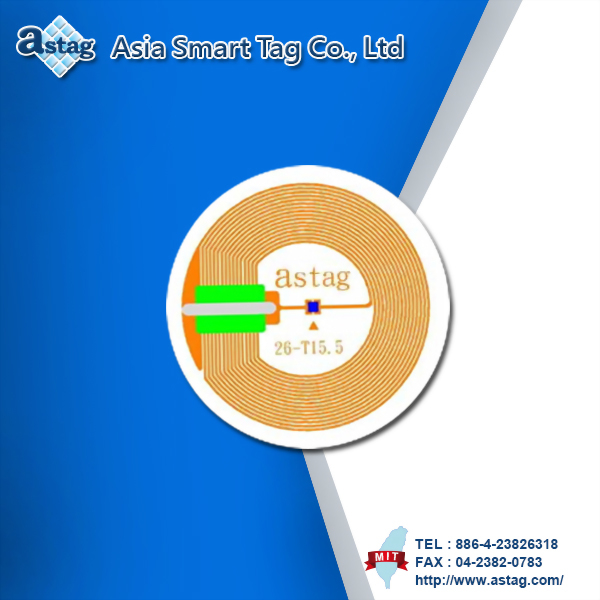

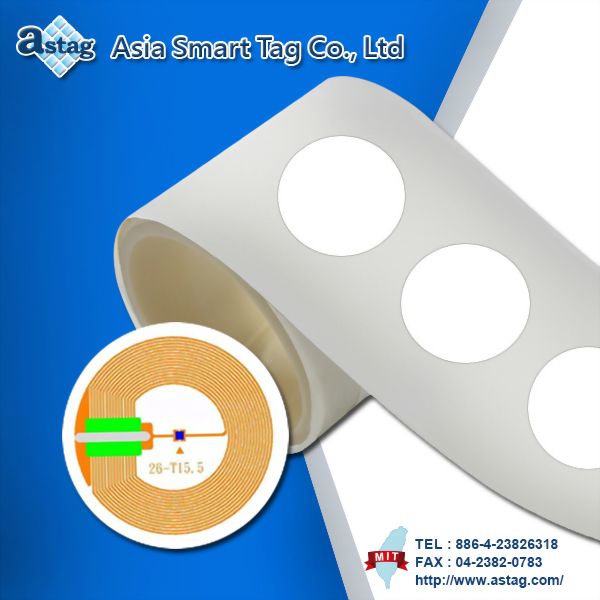

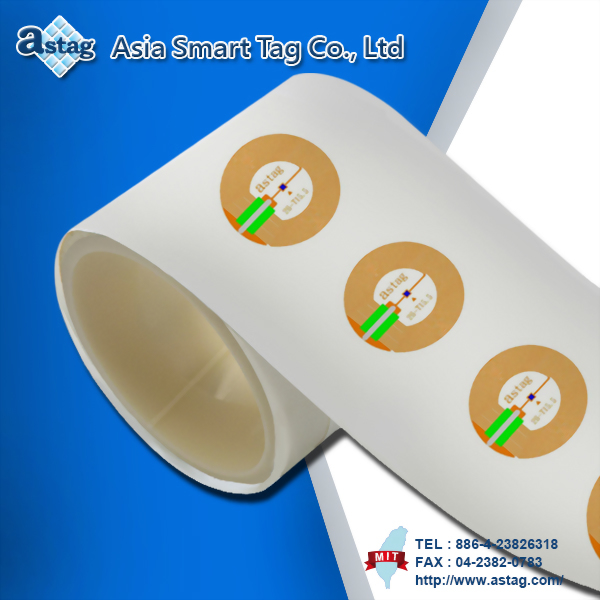

Model : PLHQ030 for Source management
Inlay Label
Iteam number PIHQ026 PLHQ030
Size Ø26 mm Ø30 mm
Frequency band 13.56 MHz ±3%
Read range
(Depends on the reader) 		Up to 3cm
Testing reader PRH578
Transmission principle passive
Antenna substrate PET
Antenna material copper
Label Cover material - Glossy Paper
(PP PEPA Paper)
Tube material ABS
Tube size 3 Inch
Package 1000 pcs/roll , 4 roll/carton
Operating temperature -30°C ~ 75°C
Storage temperature -20°C ~ 35°C
ISO standard ISO-14443A
IC item Mifare S50
Mifare S70
※Any IC is acceptable

Dimensions


Inlay Size Information　　　 　　　　　(Unit:mm)
X axis Y axis
Position Size Tolerance Position Size Tolerance
A 26 ±0.2 B 26 ±0.2
C 34 ±0.3 D 48 ±0.3
E 19.5 ±0.2 F 11 ±0.5
I 3 ±0.1 H 5 ±0.1
G 76.2 ±0.5 Frequency 13.56Mhz ±3%


Label Size Information　　 　　　　　　(Unit:mm)
X axis Y axis
Position Size Tolerance Position Size Tolerance
A 26 ±0.2 B 26 ±0.2
C 30 ±0.2 D 30 ±0.2
E 38 ±1.5 F 60 ±1
G 2 ±1.5 H 2 ±1.5
I 8 ±1.5 J 15 ±1.5
K 76.2 ±0.5 Frequency 13.56Mhz ±3%

. Can be used for car management, logistics management, warehouse management, access control management, and has a wide range of practicality
. Stable quality
. Easy to track and manage
. Customized service
