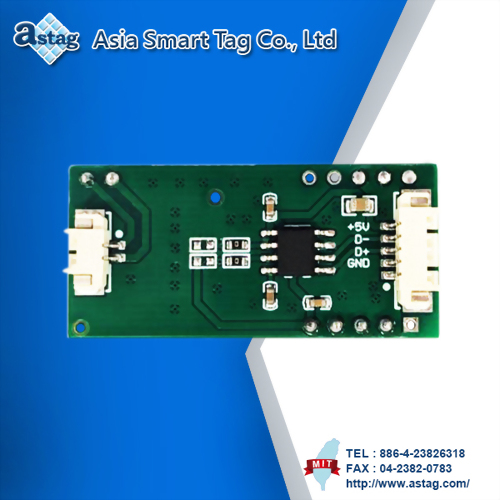

RFID HF Module

Model : CO-13709-5219

Q'ty :

．RS-485 interface.
．Frequency Reader Module 13.56 MHz (frequency band).
．Data transmission can customizable.
- ．Supports：These interfaces allow the reader module to communicate with external devices such as computers(Windows 10/11), microcontrollers, or network servers.
- - ．Support IC：Mifare standard series、Mifare desfire series、I-Code series、NFC series.
  - ．Other support：On-board Antenna, can be connected to external buzzer and LED.

Product Name	RFID HF Module
Product No.	CO-13709-5219
Frequency band	13.56 MHz
Read range	5cm ±1 cm (Antenna On Board)
Interface	RS-485 (customizable)
Baud-Rate	115200, N, 8, 1 (customizable)
Input Voltage Range	DC 5V
Interface Voltage	3.3 VDC
Dynamic mode	93 mA
Operating temperature	-30℃ ~ 70℃
Storage temperature	-30℃ ~ 70℃
Dimensions	52.8(L) x 19.6(W) x 6.9(H) mm
Audio / Visual Indication	Buzzer(External)、LED(On Board)
HF reader supports	ISO-14443A/B/C
	ISO-15693

Interface

Product No.	CO-13709-5219
Interface	RS-485

Supported

Standard	Manufacturer Tag Brand	UID	Read	Write
ISO 15693	I-Code series	Y	Y	Y
	TiTag series	Y	Y	Y
	Suitable ISO 15693 series	Y	Y	Y
ISO 14443A	NFC series	Y	Y	Y
	Mifare standard series	Y	Y	Y
	Mifare desfire series	Y	Y	Y
	Mifare Ultralight series	Y	Y	Y
	Mifare Plus series	Y	Y	Y
	Suitable ISO 14443A series	Y	Y	Y




ISO 14443B	ATMEL series	Y	Y	Y

．Access Control

．Inventory Management

．Asset Tracking

．Medical Devices

．Transportation

Related Products

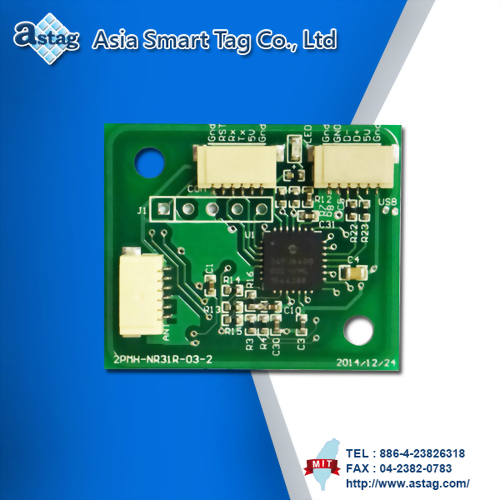

RFID HF Module

Model : PMH-NR31R-03-2

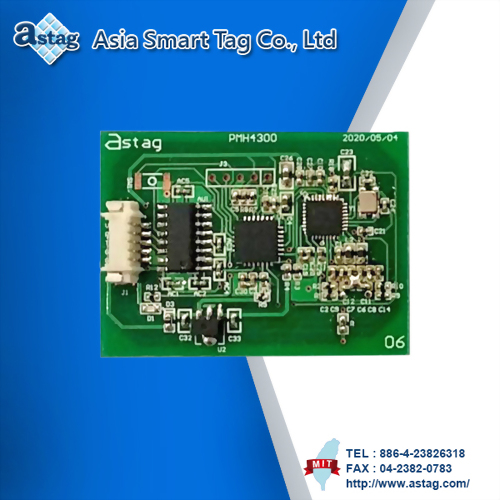

RFID HF Module
