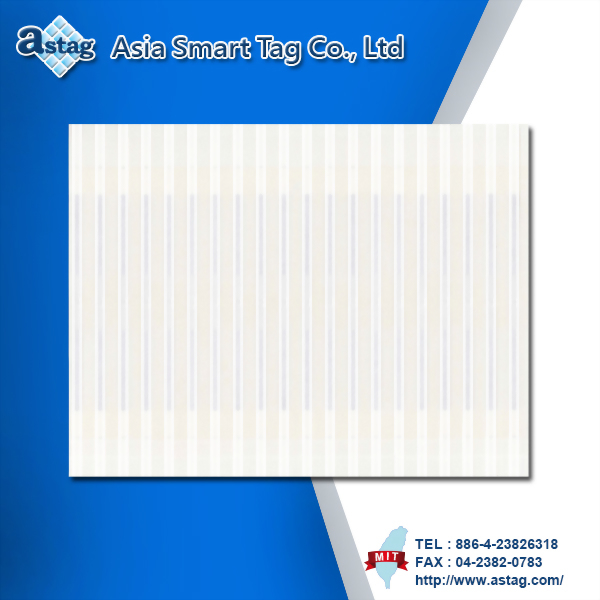

Library Label

Frequency band：860 ~ 868 MHz；902 ~ 928 MHz
Size：5 x 156 mm(L x W)

Model : PIUAU20 & PLU-005156

Q'ty :

	Inlay	Label
Iteam number	PIU003105	PLU005156
Size	3 x 105 mm(L x W)	5 x 156 mm(L x W)
Frequency band	860 ~ 868 MHz；902 ~ 928 MHz
Read range (Depends on the reader)	Up to 12M
Testing reader	1PRU258A0R2
Transmission principle	HDX(Half Duplex)
EPC	96-bits EPC Memory, extensible to 480-bits
Functionality	Read / Write
Modulation	ASK
Antenna material	Copper
Label Cover material	-	Glossy Paper (PP PEPA Paper)
Label cover color *	-	White(Can color printing, marking)
Tube material	ABS
Tube size	3 Inch
Package	1000 pcs/roll , 4 roll/carton
Operating temperature	-30°C ~ 75°C
Storage temperature	-20°C ~ 75°C
ISO standard	ISO 18000-6C / EPC-C1G2
IC item	Monza 4E / Monza R6 ALIEN H3 / ALIEN H9 NXP U Code 8 / NXP U Code 9
