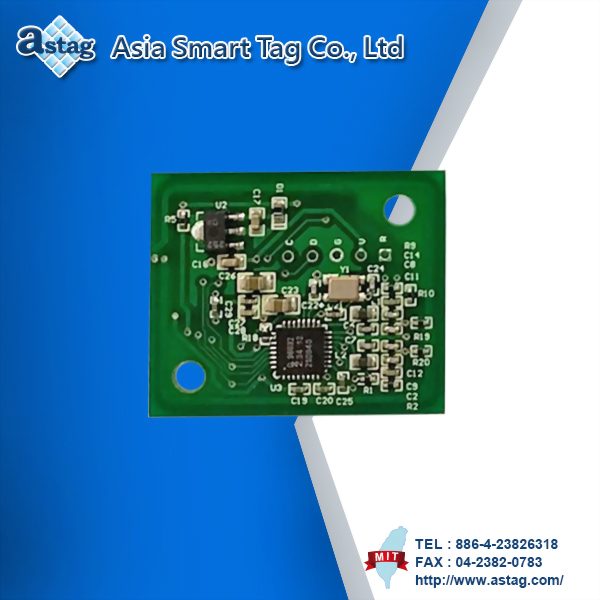

RFID HF Module

Model : PMH-NR31R-03-2

Q'ty :

．USB interface UART / HID / CCID / Keyboard Wedge.
．Frequency Reader Module 13.56 MHz (frequency band).
．On-board Antenna.
．External antenna connectivity.
．Keyboard wedge can be customizable.
．Support operating system: Windows 10, Android, Linux.
- ．Supports：These interfaces allow the reader module to communicate with external devices such as computers(Windows 10/11), microcontrollers, or network servers.
- ．Support IC：Mifare standard series、Mifare desfire series、I-Code series、NFC series.

Product Name	RFID HF Module
Product No.	PMH-NR31R-03-2
Frequency band	13.56 MHz
Read range	5cm ±1 cm (Antenna On Board) or (External Antenna)
Interface	UART / USB HID / USB CCID / USB keyboard wedge (customizable)
Baud-Rate	115200, N, 8, 1 (customizable)
Input Voltage Range	DC 5V
UART Interface Voltage	3.3 VDC
Dynamic mode	93 mA
Operating temperature	-30℃ ~ 70℃
Storage temperature	-30℃ ~ 70℃
Dimensions	31(L) x 26(W) x 5.5(H) mm
Audio / Visual Indication	LED
HF reader supports	ISO-14443A/B/C
	ISO-15693

Interface

Supported
