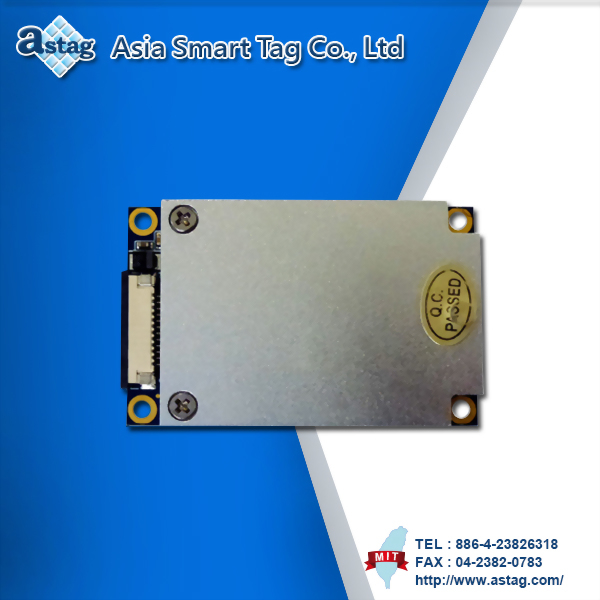

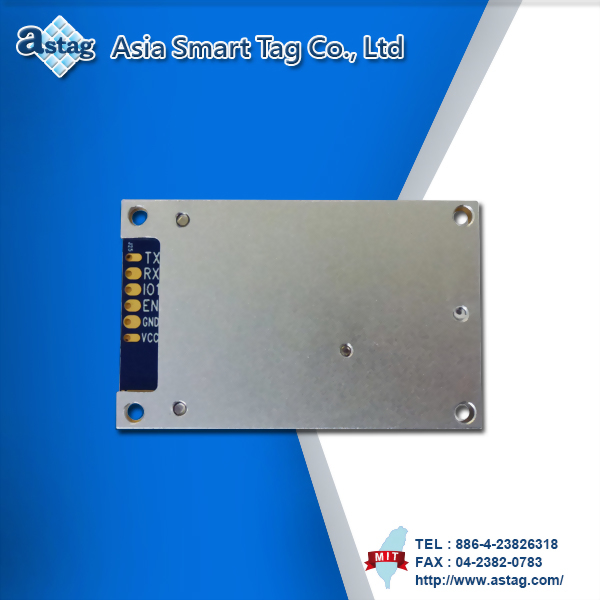

RFID UHF Reader Module 4 Port - UART

Model : PRUM4IR2R01
  • Interface RFID UHF Reader Module 4 Port -UART
    Part number PRUM4IR2R01
    Frequency band 860 ～ 960 MHz
    Host interface UART
    RS-232
    Wiegand (option)
    Channel bandwidth 250 KHz(customizable)
    Frequency
    hopping speed     		≤ 2 s
    Tag protocol EPC C1G2
    ISO18000-6C
    Muti-tags > 400/s
    Working voltage 12V
    Max TX power 30 dBm
    Stepping interval 1 dB
    Working current 950 mA
    Current consumption
    (Standby)     		≤ 1 mA
    Operating temperature -30℃ ~ 65℃
    Storage temperature 0℃ ~ 30℃
    Dimensions 55(L) x 35(W) x 7(H) mm
    ．UHF RFID Reader uses R2000 chips,it max power output is 30dBm.
    ．Maximum identifying speed can reach 400 tags/sec.
    ．Many external ports, Including RS232, GPIO*3, can meet different client’s                  requirement.
    ．Excellent read and write performance, it is suitable for complicated environment        application, for example logistics, clothing, asset management etc.

    Interface
    Product
    number     		PRUM4IR2R01 PRUM4IR2B01 PRUM4IR2D01 PRUM4IR2W01
    Interface UART RS232 RS485 Wiegand
  • Interface RFID UHF Reader Module 4 Port -UART
    Part number PRUM4IR2B01
    Frequency band 860 ～ 960 MHz
    Host interface UART
    RS-232
    Wiegand (option)
    Channel bandwidth 250 KHz(customizable)
    Frequency
    hopping speed     		≤ 2 s
    Tag protocol EPC C1G2
    ISO18000-6C
    Muti-tags > 400/s
    Working voltage 12V
    Max TX power 30 dBm
    Stepping interval 1 dB
    Working current 950 mA
    Current consumption
    (Standby)     		≤ 1 mA
    Operating temperature -30℃ ~ 65℃
    Storage temperature 0℃ ~ 30℃
    Dimensions 55(L) x 35(W) x 7(H) mm
    ．UHF RFID Reader uses R2000 chips,it max power output is 30dBm.
    ．Maximum identifying speed can reach 400 tags/sec.
    ．Many external ports, Including RS232, GPIO*3, can meet different client’s                  requirement.
    ．Excellent read and write performance, it is suitable for complicated environment        application, for example logistics, clothing, asset management etc.

    Interface
    Product
    number     		PRUM4IR2R01 PRUM4IR2B01 PRUM4IR2D01 PRUM4IR2W01
    Interface UART RS232 RS485 Wiegand
  • Interface RFID UHF Reader Module 4 Port -UART
    Part number PRUM4IR2W01
    Frequency band 860 ～ 960 MHz
    Host interface UART
    RS-232
    Wiegand (option)
    Channel bandwidth 250 KHz(customizable)
    Frequency
    hopping speed     		≤ 2 s
    Tag protocol EPC C1G2
    ISO18000-6C
    Muti-tags > 400/s
    Working voltage 12V
    Max TX power 30 dBm
    Stepping interval 1 dB
    Working current 950 mA
    Current consumption
    (Standby)     		≤ 1 mA
    Operating temperature -30℃ ~ 65℃
    Storage temperature 0℃ ~ 30℃
    Dimensions 55(L) x 35(W) x 7(H) mm
    ．UHF RFID Reader uses R2000 chips,it max power output is 30dBm.
    ．Maximum identifying speed can reach 400 tags/sec.
    ．Many external ports, Including RS232, GPIO*3, can meet different client’s                  requirement.
    ．Excellent read and write performance, it is suitable for complicated environment        application, for example logistics, clothing, asset management etc.

    Interface
    Product
    number     		PRUM4IR2R01 PRUM4IR2B01 PRUM4IR2D01 PRUM4IR2W01
    Interface UART RS232 RS485 Wiegand
