Label

Model : PLU015097
Inlay Label
Iteam number PIU006083 PLU015097
Size 6.5 x 83 mm(L x W) 15 x 97 mm(L x W)
Frequency band 866~928 MHz Band
Read range
(Depends on the reader) 		Up to 13M
Testing reader 1PRU258A0R2
Transmission principle HDX(Half Duplex)
EPC 96-bits EPC Memory, extensible to 480-bits
Functionality Read / Write
Modulation ASK
Antenna material Copper
Label Cover material - Glossy Paper
(PP PEPA Paper)
Label cover color * - White(Can color printing,
marking)
Tube material ABS
Tube size 3 Inch
Package 1000 pcs/roll , 4 roll/carton
Operating temperature -30°C ~ 75°C
Storage temperature -20°C ~ 35°C
ISO standard ISO 18000 - 6C(EPC C1 G2)
IC item Alien Higgs 4
Impinj Monza 4
※Any IC is acceptable

Dimensions

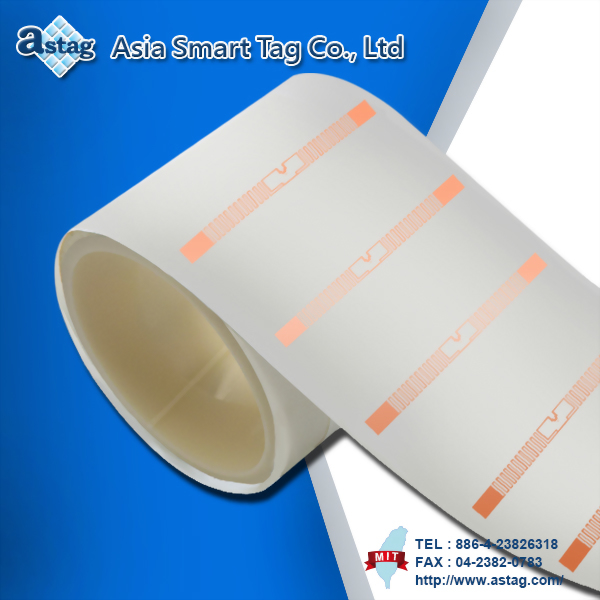

. UHF far-end tag.
. Can be used in lane system, logistics, warehouse management, with wide practicality.
. Easy to carry and paste.
. Easy to track and manage.
