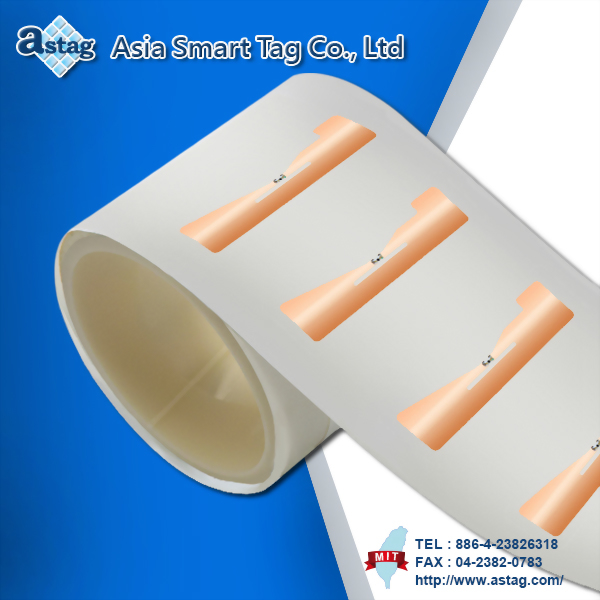

RFID UHF Inlay & Label
Model :
PIU-020070
| Operating frequency | 860 ~ 868 MHz； 902 ~ 928 MHz |
|---|---|
| Tested read range | 7~10 M |
| Tested reader | AWID_TLR3000(EPC+TID) |
| Power source | Passive |
| Transmission principle | HDX (Half Duplex) |
| ISO Standard | ISO 18000-6C |
| EPC-C1G2 | |
| IC | Monza 4E / Monza R6 / ALIEN H3 / ALIEN H9 / NXP U Code 8 / NXP U Code 9 |
| IC memory(Bits) | 800 |
| EPC memory(Bits) | 96 |
| TID memory(Bits) | 96 |
| Programming cycles | 100000 |
| Functionality | Read |
| Write | |
| EPC-extended temperature | -30 ℃ ~ +80 ℃ |
| Antenna material | Copper |
| Dimension(ANT) | 70 x 20 x 1.2 mm |
- ．Car label.
- ．E-tag: E toll.
