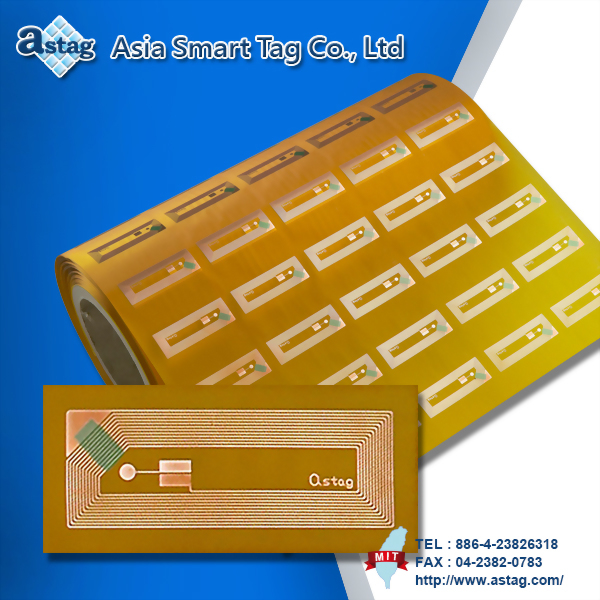

PI Antenna
Model :
PIH015042-T12 & PLH019046
| Frequency | 13.56 MHz Band |
|---|---|
| Wire diameter | 150 mm |
| Line spacing | 150 mm |
| Antenna base | PI + copper |
| Resistance | 5 Ω |
| Size | 15 x 42 mm |
| Diameter | 3 inch |
| Temperature | -40 °C to +100 °C |
| Packing | Rolled,can be monolithic |
| Can be customized | Size,diameter |
Dimensions
Inlay
|
Inlay Size Information (Unit:mm) |
|||||
|
X axis |
Y axis |
||||
|
Position |
Size |
Tolerance |
Position |
Size |
Tolerance |
|
A |
15 |
±0.2 |
B |
42 |
±0.2 |
|
C |
34 |
±0.3 |
D |
48 |
±0.3 |
|
E |
19 |
±0.2 |
F |
3 |
±0.5 |
|
G |
76.2 |
±0.5 |
Frequency |
13.56Mhz |
±3% |
Label
|
Label Size Information (Unit:mm) |
|||||
|
X axis |
Y axis |
||||
|
Position |
Size |
Tolerance |
Position |
Size |
Tolerance |
|
A |
15 |
±0.2 |
B |
42 |
±0.2 |
|
C |
19 |
±0.2 |
D |
46 |
±0.2 |
|
E |
38 |
±1.5 |
F |
60 |
±1 |
|
G |
2 |
±1.5 |
H |
2 |
±1.5 |
|
I |
19 |
±1.5 |
J |
7 |
±1.5 |
|
K |
76.2 |
±0.5 |
Frequency |
13.56Mhz |
±3% |
