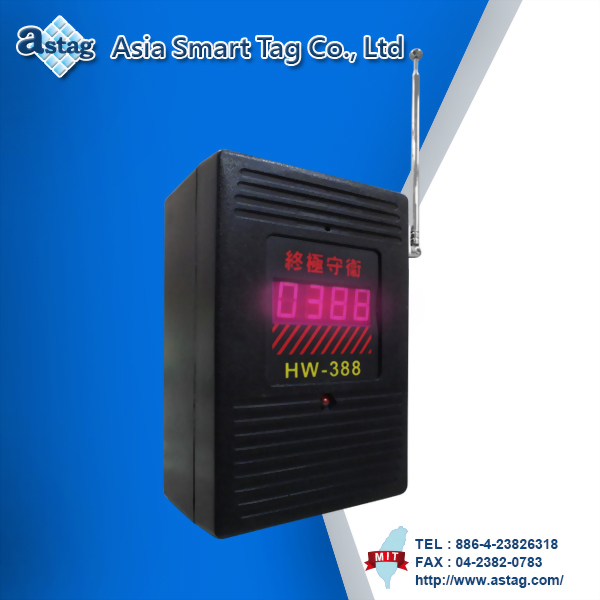

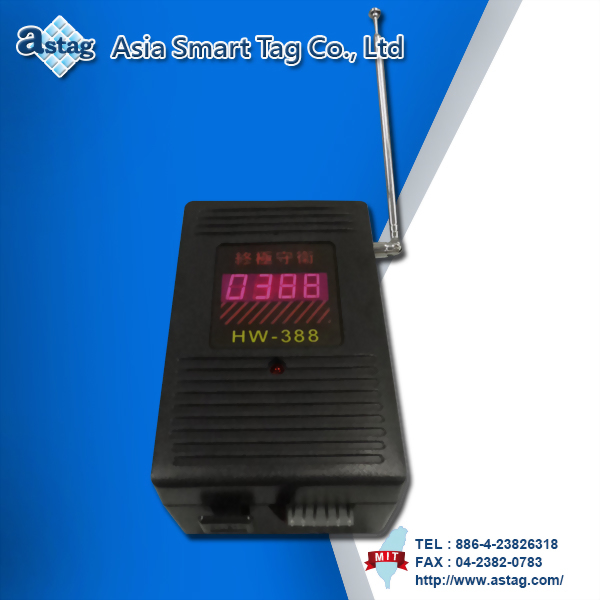

Remote Control Transmitter
Model :
RH388R
| Frequency range | 315MHz ; 320MHz ; 434MHz (Can Customized) | |
|---|---|---|
| Code | Hopping Code | |
| Consumptive current | 98 mA | |
| Sensitivity | -106 dbm | |
| Noise equivalent BW NEB | 4KHz Max | |
| Voltage | AC 110V / 220V | |
| Display device | 4 number LED Screen | |
| Output method |
2A1B ,3A ,4A (Can Customized) |
|
| Output interfance | RS-485 Link to computer | |
| Baud rate | 9600 Baud Rate | |
| Capacity | 9900 sets Transmitters Maximum | |
| Memory | 1000 Max | |
| Color | Black | |
| Size | 138 x 86 x 57 mm(L x W x H) | |
| Applications | Parking lot management, Garage door management, Access control management | |
Lane.
．Avoiding the accident by connecting with an
Infrared Ray.
．Set up the time to control the gate.
．HW-388 series is adopting the Hopping Code.
．The Transmitter will change the different code by
each use.
．Furthermore, each Transmitter can set up the
different number.
．Preventing to be copied.
．Each Transmitter can edit the unique number.
．If the HW-388 receive the same number that is
used by more than two Transmitters the whole
Transmitters of same number that will be deleted.
．If the transmitter was lost, the guard can delete
the transmitter by HW-388S to regulate the
access control system.
．HW-388S and HW-388R is wireless, be
convenient to your operation.
．HW-388S can edit the code in the transmitter.
．HW-388S can set up several functions as follow :
a. Deletion
b. Reset
c. The last transmitter number
d. The initial transmitter number
．Connecting with PC to record the data of pass in
and out.
．Connecting with HW-5056 to make the Access
Control System safer and easier.
．Enhancing the remote-controlled distance.
Introduction
RH388R Hardware Operation Manual
Lane Gate Security Control
To guarantee safety for men and car, the security function of Infrared Ray Sensor (NO
contact) is as below:
1.When the countdown of Time Control starts, if any side of Infrared Ray is obstructed,
the countdown will stop and will only restart when the obstruction is solved.
2.Whether Time Control is installed or not: if Infrared ray sensor is obstructed while the
gate or roll-up steel door is descending, the gate or roll-up steel door will stop to
ascend. If Time Control function is open when infrared ray sensor is obstructed, the
countdown will restart.
3.When Infrared Ray continues to be obstructed (man and car are right under the door),
for safety, the transmitter will not be able to shut down the gate or the roll-up steel door.
Two-door Remote Control

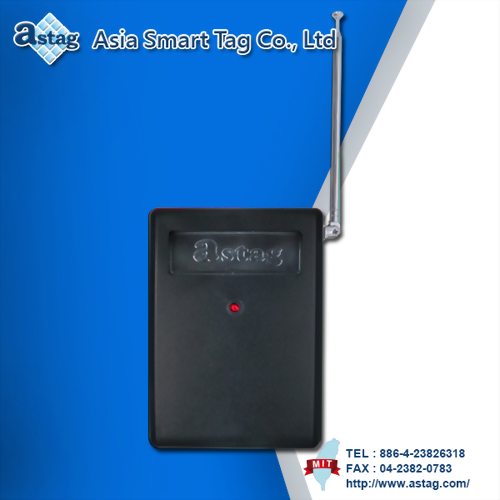

Can be used with the Remote Setting Control Transmitter
|
Setting Transmitter RH388S |
Can be used with the following Hopping Code Remote Controller.
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
