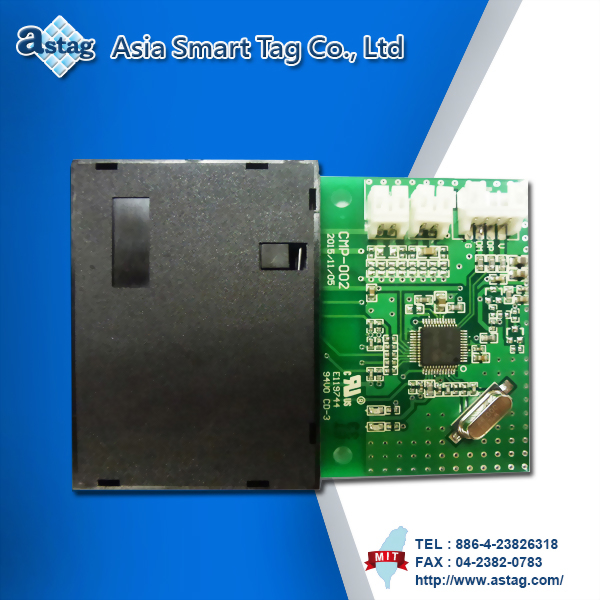

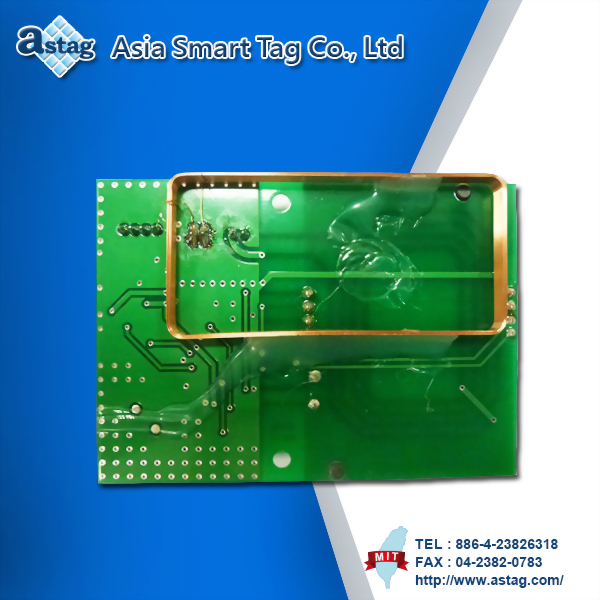

CMP-002 Smart Card Reader

Model : CMP-002

Read range Up to 30 mm(depend on Tag)
Host interface Compliant with Universal Serial Bus specification version 2.0(USB2.0) full speed
Modulation ASK
FSK
PSK
Transfer rate 848 Kbps(customizable)
UART data rate 57600, N, 8, 1(customizable)
Power supply Bus powered(or DC5V)
Driver supply WinXP
Vista
Win7
Win8
Win2003
Win2008(32bit)
Win2008(64bit)
MAC(10.5/10.6/10.7)
MAC 10.9
Status indicator Dual Color LED
Connector cable Wafer 4pin 2.0mm / 90 ﾟ(Cable not included)
Support EMV V4.0 Level 1 compliant Card interface electrical
Characteristics is compliant to ISO 7816 part 1,2,3 ICC access baud-rate up to 31 clock pulse(D=12 / F=372) Support ISO 7816 T=0,T=1 smart card
Support memory card 3V/5V smart card supported
Operating temperature -30ﾟC ~ 65 ﾟC
Storage temperature 0 ﾟC ~ 30ﾟC
Weight 23.8 g ± 1 g

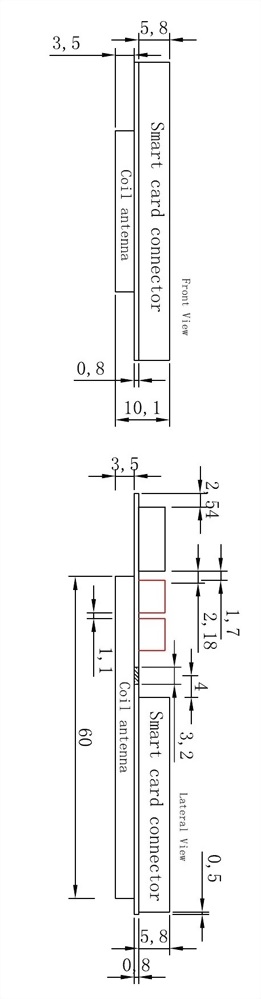

Dimensions 45 mm(L) x 55.5 mm(W) x 12.2 mm(H)
This smart card reader has been implemented with a completed firmware, which is, with its associated
driver, compliant to PC/SC “Interoperability Specification for ICCs and Personal Computer Systems Version 1.0”

USB Connector Pin Define

Pin Number Description
1 DC 5V
2 D-
3 D+
4 GND
