Label

Model : PLU020118

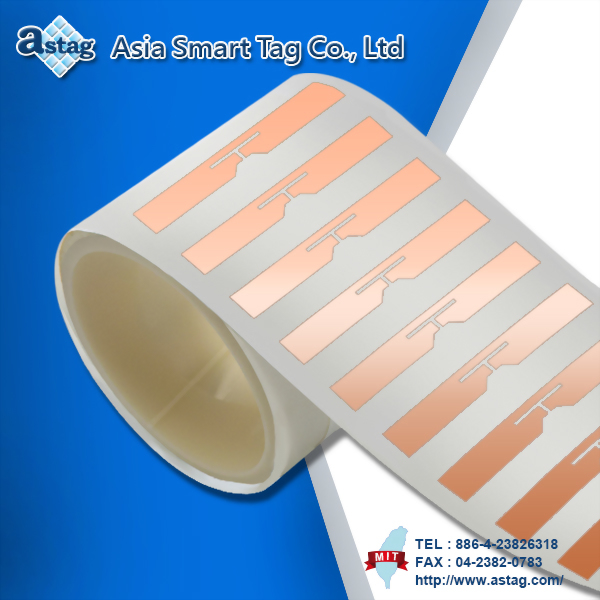

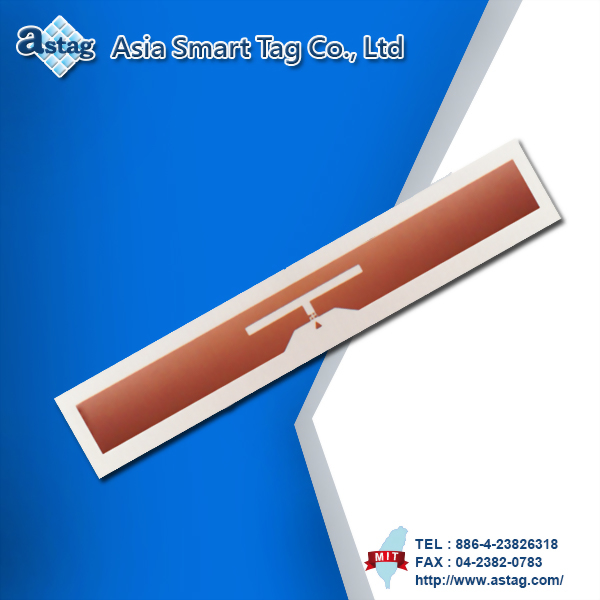

Inlay Label
Iteam number PIU010094 PLU020118
Size 10 x 94 mm(L x W) 20 x 118 mm(L x W)
Frequency band 866~928 MHz Band
Read range
(Depends on the reader)
Up to 15M
Testing reader 1PRU258A0R2
Transmission principle HDX(Half Duplex)
EPC 96-bits EPC Memory, extensible to 480-bits
Functionality Read / Write
Modulation ASK
Antenna material Copper
Label Cover material - Glossy Paper
(PP PEPA Paper)
Label cover color * - White(Can color printing,
marking)
Tube material ABS
Tube size 3 Inch
Package 1000 pcs/roll , 4 roll/carton
Operating temperature -30°C ~ 75°C
Storage temperature -20°C ~ 35°C
ISO standard ISO 18000 - 6C(EPC C1 G2)
IC item Alien Higgs 4
Alien Higgs 9
※Any IC is acceptable

Dimensions


Label
