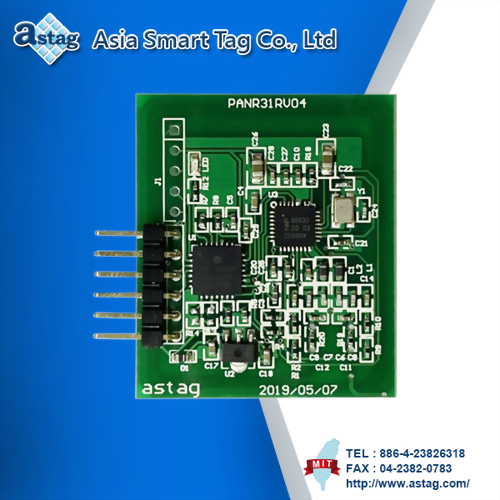

RFID HF Module

Model : PAHNR31R_DA

Q'ty :

．USB interface UART.
．Frequency Reader Module 13.56 MHz (frequency band).
．Data transmission can customizable.
- ．Supports：These interfaces allow the reader module to communicate with external devices such as computers(Windows 10/11), microcontrollers, or network servers.
- ．Support IC：Mifare standard series、Mifare desfire series、I-Code series、NFC series.

  ．Other support：Read/Write, can be connected to external Antenna and LED.

Product Name	RFID HF Module
Product No.	PAHNR31RDA
Frequency band	13.56 MHz
Read range	10cm ±1 cm (External Antenna)
Interface	UART (customizable)
Baud-Rate	115200, N, 8, 1 (customizable)
Input Voltage Range	DC 5V
UART Interface Voltage	3.3 VDC
Dynamic mode	93 mA
Operating temperature	-30℃ ~ 70℃
Storage temperature	-30℃ ~ 70℃
Dimensions	41(L) x 26(W) x 8.2(H) mm
Audio / Visual Indication	Buzzer、LED
HF reader supports	ISO-14443A/B/C
	ISO-15693

Interface

Product No.	PAHNR31RDA
Interface	UART

Supported

Standard	Manufacturer Tag Brand	UID	Read	Write
ISO 15693	I-Code series	Y	Y	Y
	TiTag series	Y	Y	Y
	Suitable ISO 15693 series	Y	Y	Y
ISO 14443A	NFC series	Y	Y	Y
	Mifare standard series	Y	Y	Y
	Mifare desfire series	Y	Y	Y
	Mifare Ultralight series	Y	Y	Y
	Mifare Plus series	Y	Y	Y
	Suitable ISO 14443A series	Y	Y	Y




ISO 14443B	ATMEL series	Y	Y	Y

．Access Control

．Inventory Management

．Asset Tracking

Related Products

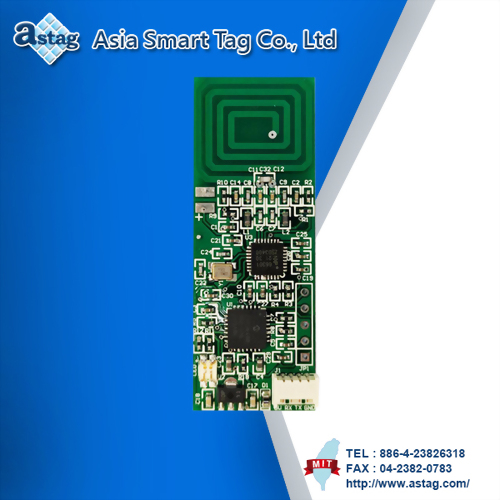

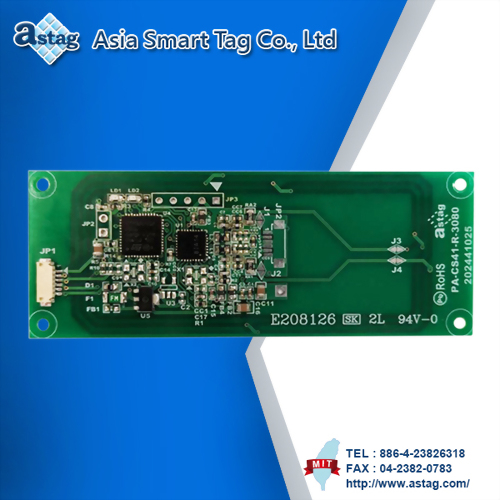

RFID HF Module
