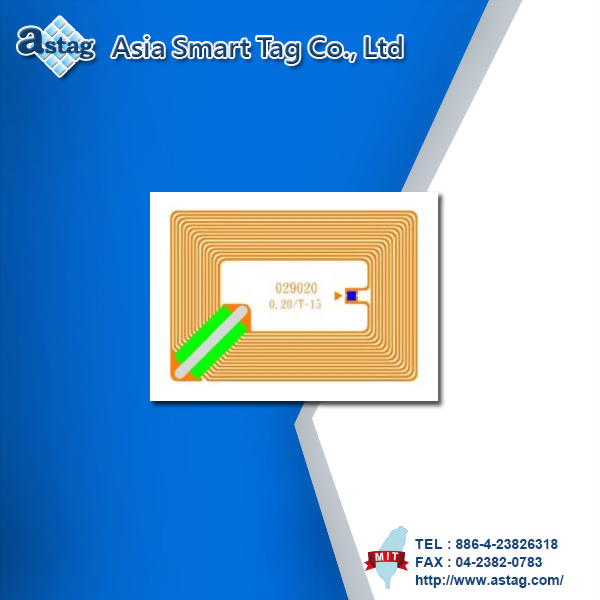

Inlay | Label | |
Iteam number | PIH018024 | PLH022028 |
Size | 20 x 60 mm(L x W) | 24 x 26 mm(L x W) |
Frequency band | 13.56 MHz ±3% | |
Read range (Depends on the reader) |
Up to 6cm | |
Testing reader | PRH578 | |
Transmission principle | passive | |
Antenna substrate | PET | |
Antenna material | copper | |
Label Cover material | - |
Glossy Paper (PP PEPA Paper) |
Tube material | ABS | |
Tube size | 3 Inch | |
Package | 1000 pcs/roll , 4 roll/carton | |
Operating temperature | -30°C ~ 75°C | |
Storage temperature | -20°C ~ 35°C | |
ISO standard | ISO 15693 | |
IC item |
I-code-SLI series ※Any IC is acceptable |
Dimensions
Inlay Size Information (Unit:mm) | |||||
X axis | Y axis | ||||
Position | Size | Tolerance | Position | Size | Tolerance |
A | 20 | ±0.2 | B | 60 | ±0.2 |
C | 34 | ±0.3 | D | 72 | ±0.3 |
E | 14 | ±0.2 | F | 6 | ±0.5 |
G | 76.22 | ±0.5 | Frequency | 13.56Mhz | ±3% |
Label Size Information (Unit:mm) | |||||
X axis | Y axis | ||||
Position | Size | Tolerance | Position | Size | Tolerance |
A | 20 | ±0.2 | B | 60 | ±0.2 |
C | 24 | ±0.2 | D | 64 | ±0.2 |
E | 38 | ±1.5 | F | 80 | ±1 |
G | 2 | ±1.5 | H | 2 | ±1.5 |
I | 14 | ±1.5 | J | 8 | ±1.5 |
K | 76.2 | ±0.5 | Frequency | 13.56Mhz | ±3% |
